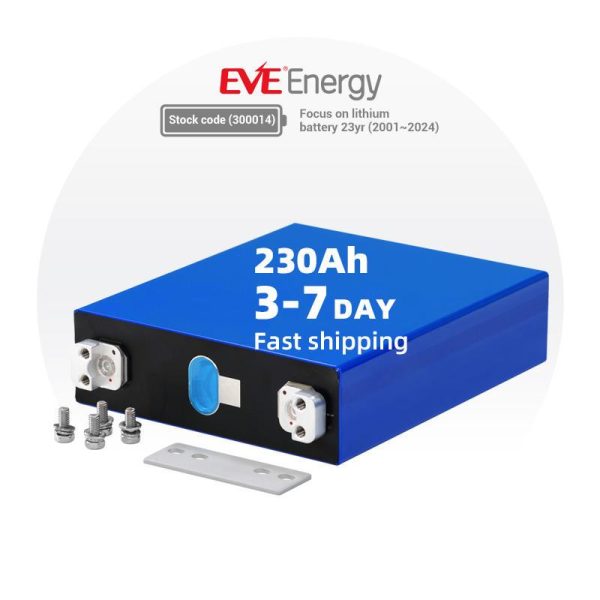

EVE LF230 3.2V 230Ah Lifepo4 Battery
The battery meets the demanding needs of new energy, industrial and critical facilities through high safety and long cycle life (≥5,000 cycles), and requires strict adherence to codes of practice to optimize performance and safety.
🕢 [ Fill out the form and we will respond within 30 minutes! ]
Attributes
| Item | Description |
| Cycle Life | 4000cycles |
| Cathode Materials | LiFePO4 |
| Model Number | EVE LF230 |
| Operating Temperature(℃) | -35℃-65℃ |
| Brand Name | EVE |
| Battery Type | liquid |
| Weight | 4140 g ± 124 g |
| Place of Origin | Hubei, China |
| Brand | EVE |
| Monthly Self-discharge Rate | ≤3%/M |
| size | 173.93 * 53.85 * 207.3mm |
| Name | EVE LF230 |
| Cycle life | 4000 Cycles (25℃),2000 Cycles(45℃) |
| Type | Lithium iron phosphate battery |
| Storage Temperature | 0 ℃ ~ 35 ℃(3months) |
| Standard Charge-discharge rate | 0.5C(MAX 2C) |
| Initial IR | 0.20 mΩ |
| Electric Energy | 736 |
Core Application Scenarios
Renewable Energy Storage
- Solar Systems: Ideal for residential or commercial off-grid/grid-tied configurations.
- Grid Load Balancing: Used in large-scale energy storage plants to optimize peak-valley electricity costs.
Electric Mobility & Industrial Equipment
- Low-Speed EVs: Powers golf carts, forklifts, and AGVs with high-rate discharge capability.
- Heavy Machinery: Energizes electric loaders and mining trucks with fast charging support.
Critical Infrastructure Backup
- Telecom Stations: Ensures stable power supply in extreme cold (-20°C).
- Data Center UPS: Maintains server operation during power outages.
Note
Temperature Control
- Operate within 0~55°C (charging) and **-20~55°C** (discharging). Activate BMS heating in cold environments.
Voltage Balancing & BMS
- Ensure cell uniformity in series connections. Active balancing BMS is mandatory.
Certification Compliance
- Export requires UN38.3, MSDS, etc. Retail must meet regional safety regulations.
Storage & Maintenance
- Store at 15~25°C with 50% SOC. Perform regular voltage checks to prevent over-discharge.
10 things to note when purchasing products from China
Help Center
Have a query? Please check this question and answers
It is prohibited to mix different brands or batches of batteries for reasons including:
Capacity difference: CATL 280Ah and EVE LF280K actual capacity error ±3%, parallel connection may lead to reverse charging loss;
Inconsistency in internal resistance: BMS equalization fails after mixing, accelerating the attenuation of the weakest monomer in the group (barrel effect).
Solution: Separate the capacity and selection before grouping to ensure that the difference in internal resistance is less than 1mΩ and the difference in voltage is less than 10mV.
The products are UN38.3 (aviation safety certification), CE (European Union access), RoHS (no hazardous substances) certified
In the case that the description of the battery you are shopping for states that it still works at that temperature, the capacity drops to 50%-60% at -20°C, it is recommended:
Optional low temperature electrolyte (boost 10%-15% capacity);
Add preheating system (e.g. solar energy storage scenario).
High temperature protection: 55°C is the upper working limit, need to:
Avoid direct sunlight (add sunshade for outdoor installation);
Regularly check the cooling ducts and keep the distance between batteries ≥ 5cm
It is strongly recommended to use the original matching charger. The battery supports 1C standard charging (280A current), if using a non-specialized charger may lead to:
Risk of overcharging: over-voltage of ordinary lead-acid charger (e.g. 58.4V for Li-ion Sainty) may trigger the protection board to lock up;
Loss of efficiency: non-matching chargers may not be able to activate the BMS equalization function, resulting in widening the voltage difference between single units.
Recommended configuration: 48V system using 58.4V lithium iron phosphate special charger, support Bluetooth module real-time monitoring of the charging status.
Protective measures: wear insulating gloves and goggles, use matching copper rows (free connectors included) to reduce contact resistance;Environmental requirements: working temperature -20°C~55°C, humidity <70%, avoid direct sunlight;
Parallel/series connection rules: parallel connection requires the same cell capacity, series connection requires the configuration of active equalization BMS.
Q: How to extend the overall life of the battery pack?
A: Follow the “barrel theory” – check the weakest cell regularly:
Use a voltmeter to check the consistency of the cells every month;
Avoid frequent fast charging (>1C) or deep discharging (<10%);
For energy storage scenarios, we recommend charging to 90% and discharging to 20% to slow down the degradation.
Lithium iron phosphate battery capacity drops to 50-60% of normal at -20°C (about 70% for ternary batteries)
If the voltage of the whole pack is lower than the nominal value or the temperature of a single unit is too high, it may be due to wrong connection, short circuit or poor cell consistency.
Suggestion: Check whether the electrode connection is loose or reversed;
Use active equalization module to balance the voltage of the cell;
Replace the monobloc with abnormal performance
